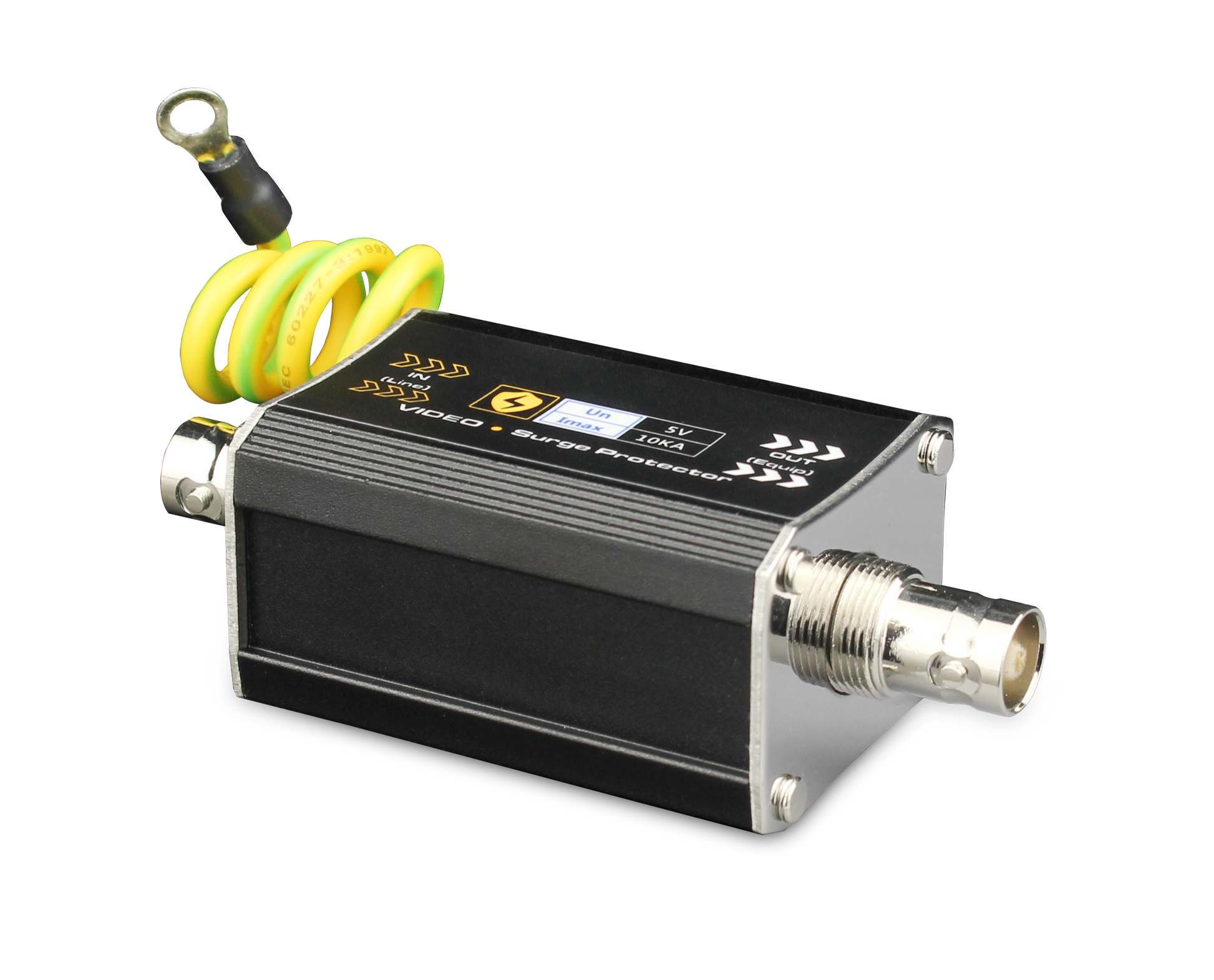

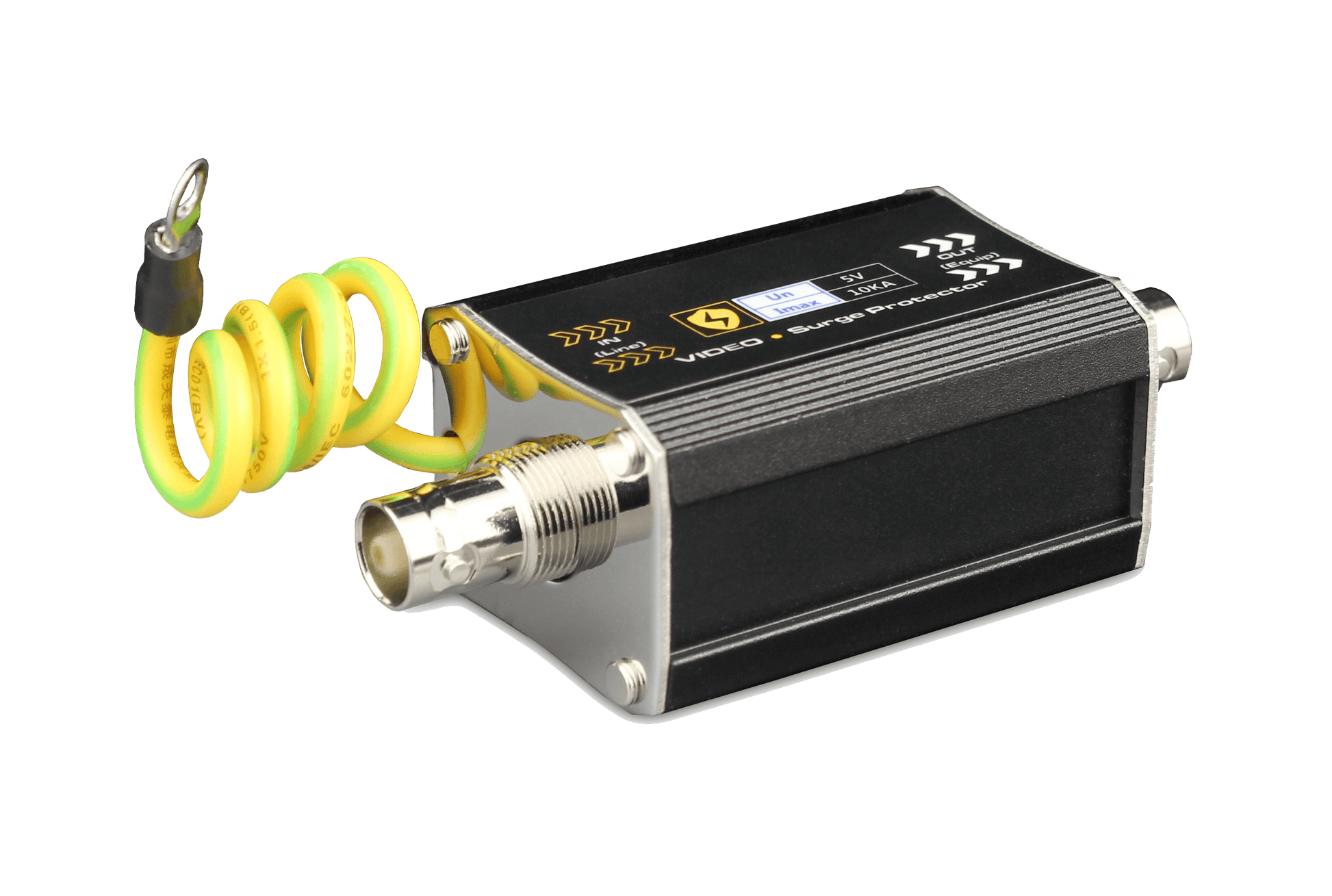

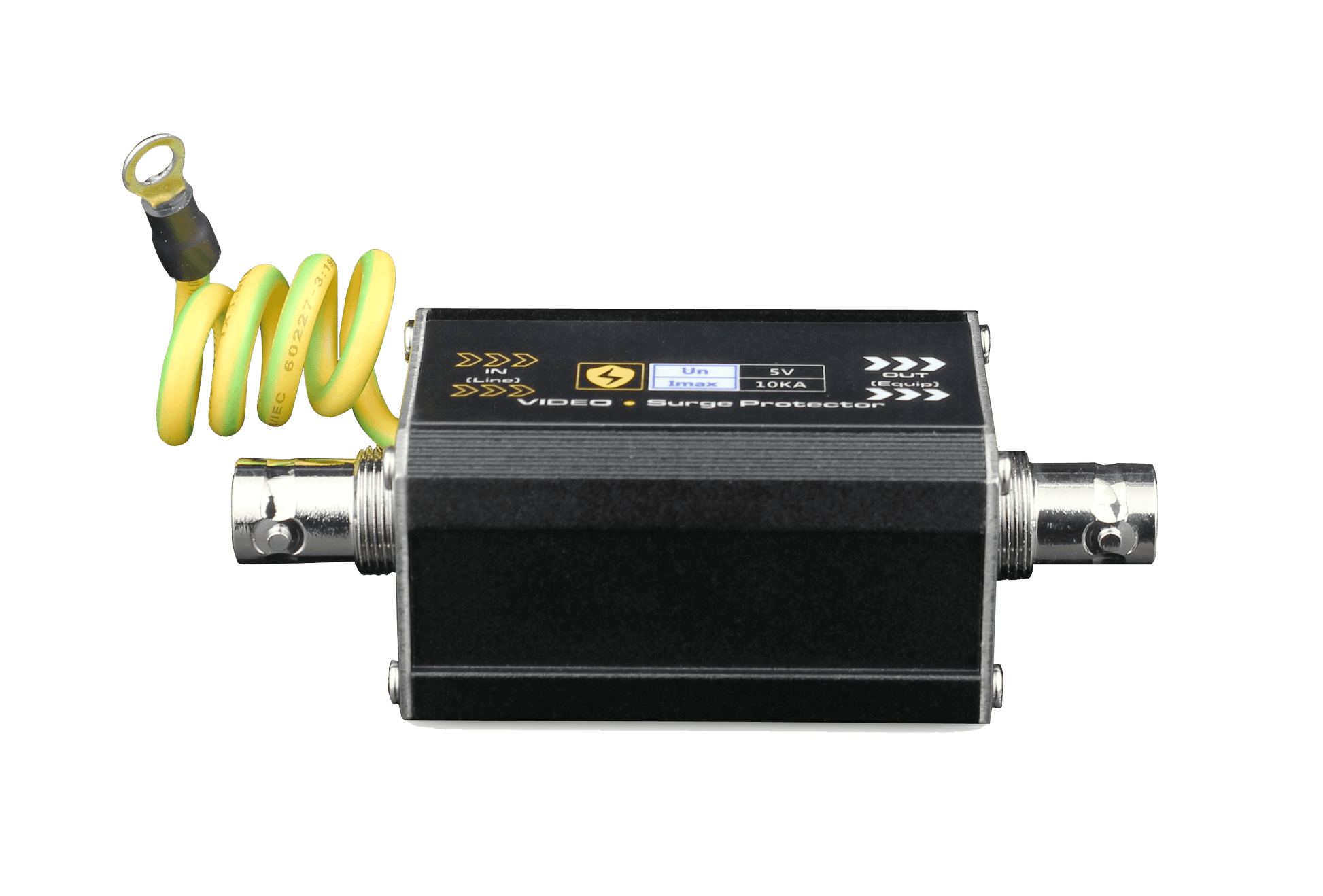

Video Surge Protector

Video Surge Protector

  • Multi-Level protection
  • Large flow capacity
  • Low voltage limited
  • Quickly response
  • Low Insertion loss
View full details

Overview

The video surge protector meets the provisions of national standard IEC61643-21:2000,protecting the equipment from damage due to monitor system signals induced overvoltage, operating overvoltage and electrostatic discharge .It features multilevel protection、large flow capacity、low voltage limited、quickly response and low insertion loss.

Features

Multi-Level protection.

  • Large flow capacity.
  • Low voltage limited.
  • Quickly response.
  • Low Insertion loss.

Application

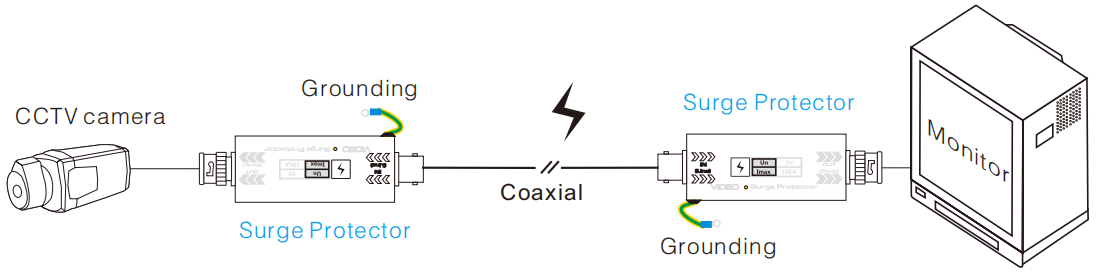

Application Image

Technical Specifications

Working voltage(Un) 8V
Nominal discharge current(In) 3KA
Maximum discharge current(Imax) 5KA
Protection level(Up) ≤40V
Rate Video:30Mbps
Response time 1 ns
Insertion loss ≤0 .5dB
Connector BNC male and Green terminal
Rated load current DC500mA
Working temperature -40℃~85℃
Storage temperature -40℃~75℃
Humidity(non-condensing) 0~95%
Weight 100g
Dimension(L×W×H) 70mm×37mm×28mm
Outer shell Aluminum

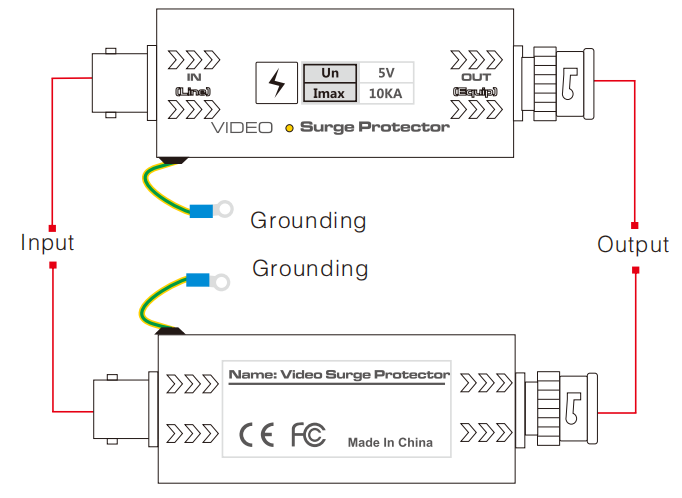

Board Diagram

Board Diagram

Packing List

1* Single Channel video surge protector

1* User Manual
