Overview

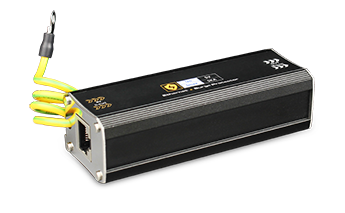

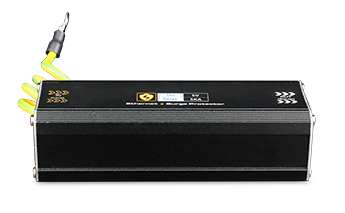

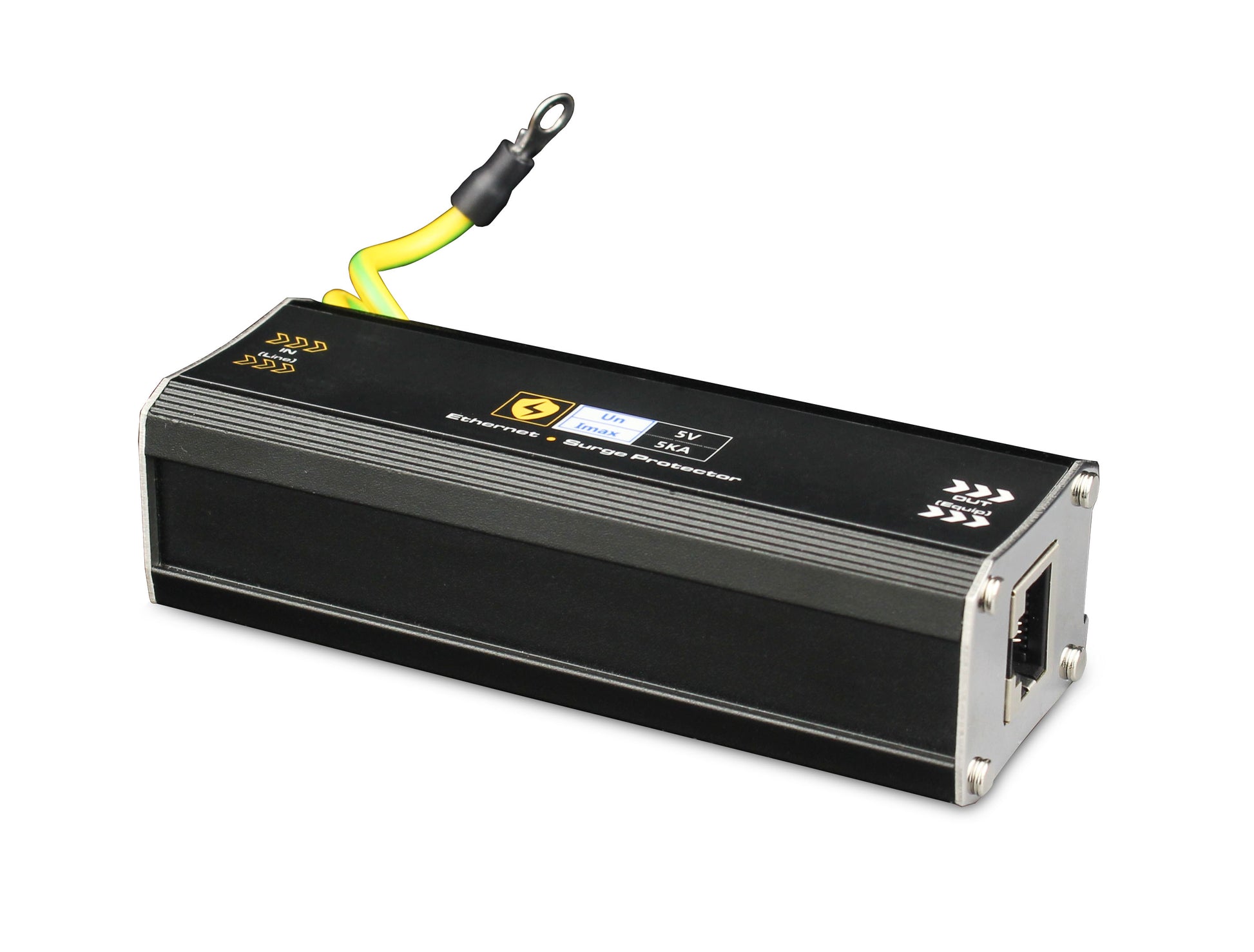

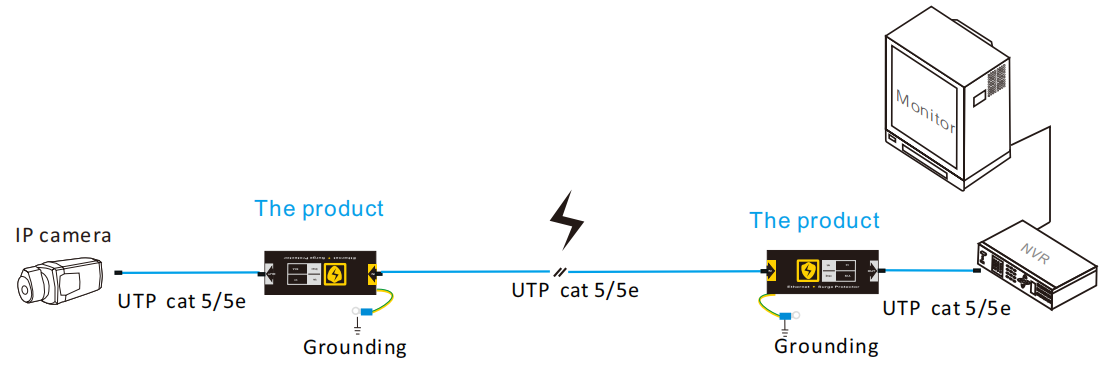

The product is a single channel network signal surge protector according to IEC61643-21:2000 design standard.The device rated working voltage is 5V,the max contious running voltage is 6V,limited voltage less than 20V,it has multi level protection function,high capacity,low limited voltage,quickly response,low insertion loss and so on .It is applicable for computer network signal ,Hub,network switch,network and so on as whole monitoring system accurate overvoltage protection, making it is safe from induced overvoltage ,operating over-voltage and electrostatic discharge caused damage.
Features
- Reference standard: IEC61643-21:2000;
- Protection signals: Ethernet signal,bandwith more than 100MHz;
- Function : Multi function and multi level overvoltage protection, high capacity, low limited voltage, quickly response, low insertion loss;

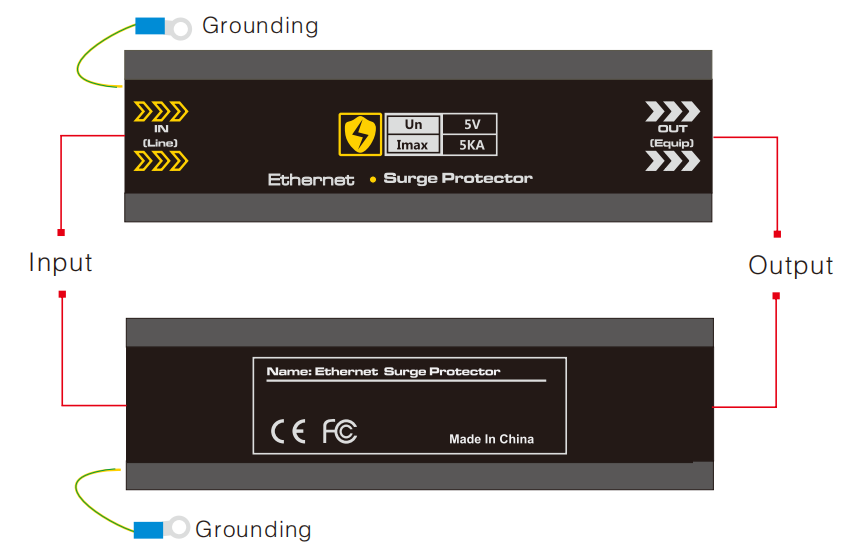

- Grounding: Extension cable directly connect with ground wire Appearance design: identification clearness, easy recognition, whole aluminium outer shell, mini size,easy installation.
