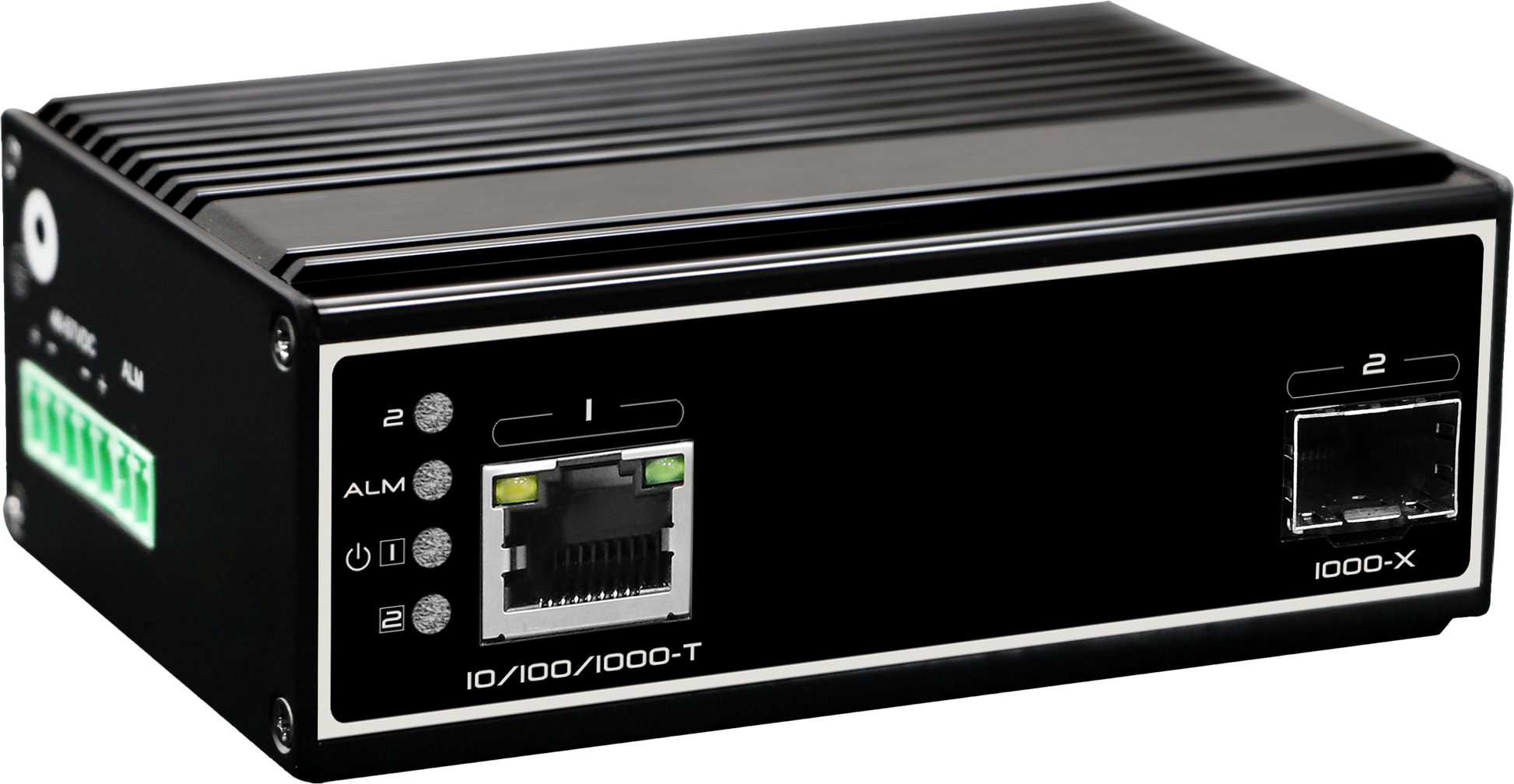

Industrial Gigabit Media Convertor with Relay Alarm
Industrial Gigabit Media Convertor with Relay Alarm
- With 1*10/100/1000M RJ45 port and 1*1000M SFP port;
- Supports relay alarm for power off, network broken;
- Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
- Supports working temperature -40℃～75℃.
Overview
It is a 2-port industrial full gigabit Media Convertor that supports up to 1 *10/100/1000M RJ45 port and 1*1000M SFP slot.
It supports relay alarm for power off, network broken.
It has the characteristics of reliable work, strong and durable, high cost performance and so on. It can be used in security
network video monitoring system, network engineering and other occasions.
Features
- With 1*10/100/1000M RJ45 port and 1*1000M SFP port;
- Supports relay alarm for power off, network broken;
- Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
- Supports working temperature -40℃～75℃.
Technical Specifications
| Protection Levl | IP40 |
| Power supply | Powered by power adaptor |
| Range of voltage | DC 12~60V |
| Consumption | Self consumption<5W |
| Downlink ports | Ports 1: 10/100/1000Base-T RJ45 |
| Uplink ports | Ports 2: 1000Base-X SFP |
| Relay alarm | 1 channel relay alarm output for power off, ports link down |
| Cable and distance | Use cat5e/6,100m max |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 4 Gbps |
| Though put | 2.976 Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Indicator | Power: 2*red ; |
| Protection | Uplink2: Green LEDs indicate Link/Act |
| Working temperature | Downlink 1: Yellow LED and green LEDs indicate Link/Act |
| Storage temperature | Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2 |
| Humidity | -40℃~75℃ |
| Dimension(L×W×H) | -40℃~85℃ |
| Material | 0~95%(No condensation) |
| Colour | 101mm×65 mm×36mm |
| Net-weight | Aluminum |

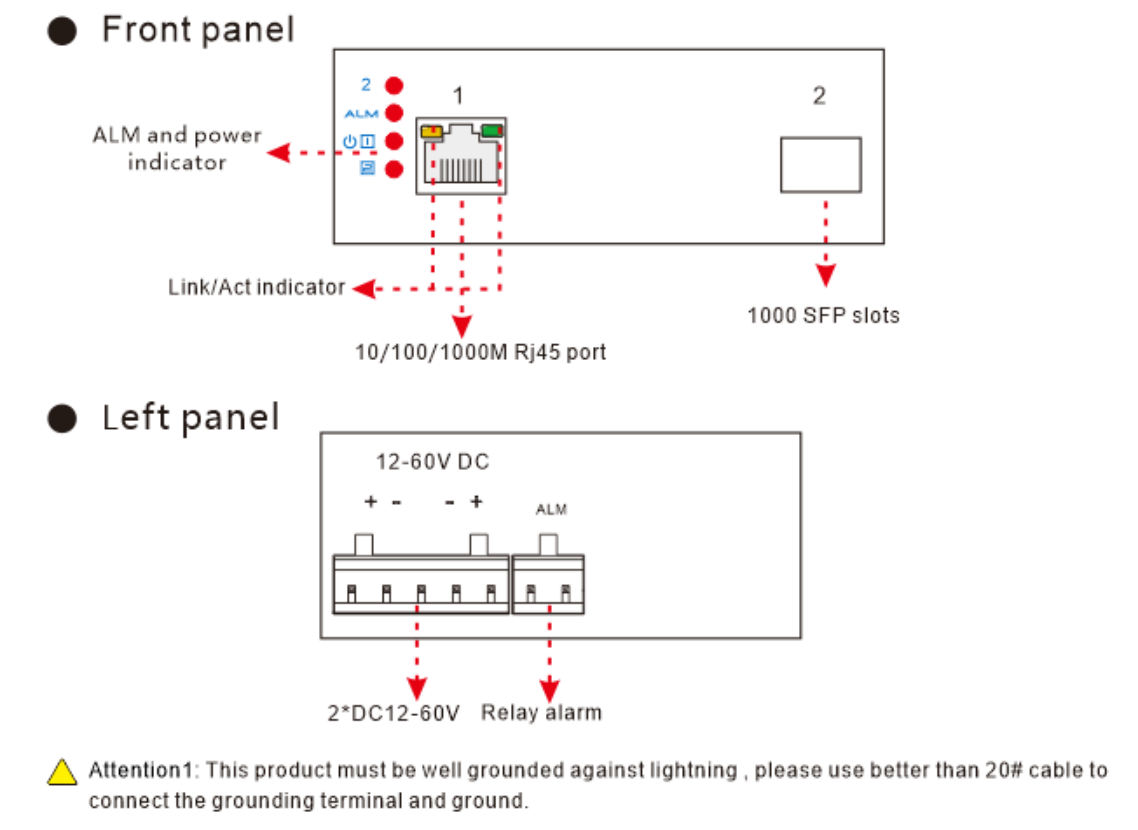

Board Diagram
