Industrial Gigabit Ethernet Media Converter

Industrial Gigabit Ethernet Media Converter

Provide 1*gigabit fiber optical port and 1*gigabit ethernet port
Support 10/100/1000Mbps full/half duplex automatic adaptation and automatic MDI/MDIX.
Support 6KV surge protection, 6KV/8KV ESD protection.
Support -40℃~75℃ working temperature.
Meet 2U rack installation standard
Aluminum Enclosure

View full details

Overview

It is an industrial gigabit Ethernet fiber optical transmission equipment which can convert between network
cable and optical fiber cable. It supports 10/100/1000Mbps network bandwidth. It can be used in pairs and
can also be used together with other equipments. It is widely used in surveillance, home network fiber, etc.

Features

Support 10/100/1000Mbps full/ half duplex automatic adaptation and automatic MDI/ MDIX .
Support 6KV surge protection,6 KV/ 8KV ESD protection .
Support -40℃~75℃ working temperature

Application

Technical Specifications

Ethernet Ports	Ethernet port:10/100/1000Mbps
Transmission Distance	0 ～100m
Fiber Port	LC Port , SFP Optical Module , Single Fiber or Dual Fiber Optional
Bandwidth	1 .25Gb ps
Transmission Distance	Depend on SFP module performance
Standards	IEEE 802 .3 , IEEE 802 .3 u , IEEE 802 .3ab/z , 10/100/1000BASE-T and 1000BASE-X , IEEE 802 .3 X .
Power Indicator Light	1 Red
Network Indicator Light	1 Green on RJ45 Socket
Fiber Indicator Light	3 Green ( Link ,SD , FED)
Input Voltage	12~24V DC
Surge Immunity	6 kV,Standard: IEC61000-4-5
ESD Protection	Level 3 ,Standard: IEC61000-4-2
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~85℃
Operating Humidity	0~95% ( Non-condensation)
Dimensions (WDH)	103mm82mm25 mm
Net Weight	160g
Material	Aluminum Alloy

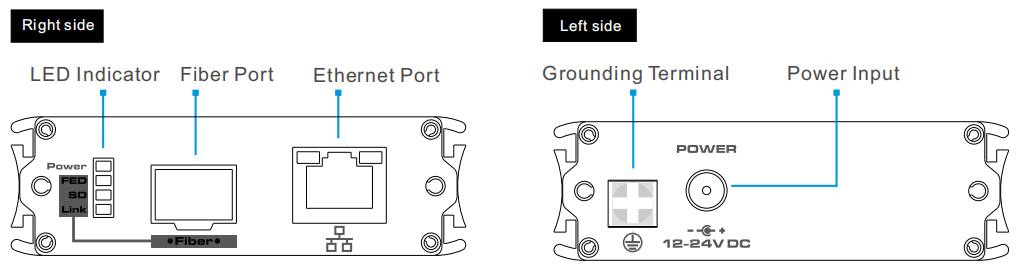

Board Diagram

Packing List

1* Gigabit Ethernet Converter
1* Power Adapter
1* AC Power Cord
2* MIT Hangers
1* User Manual
