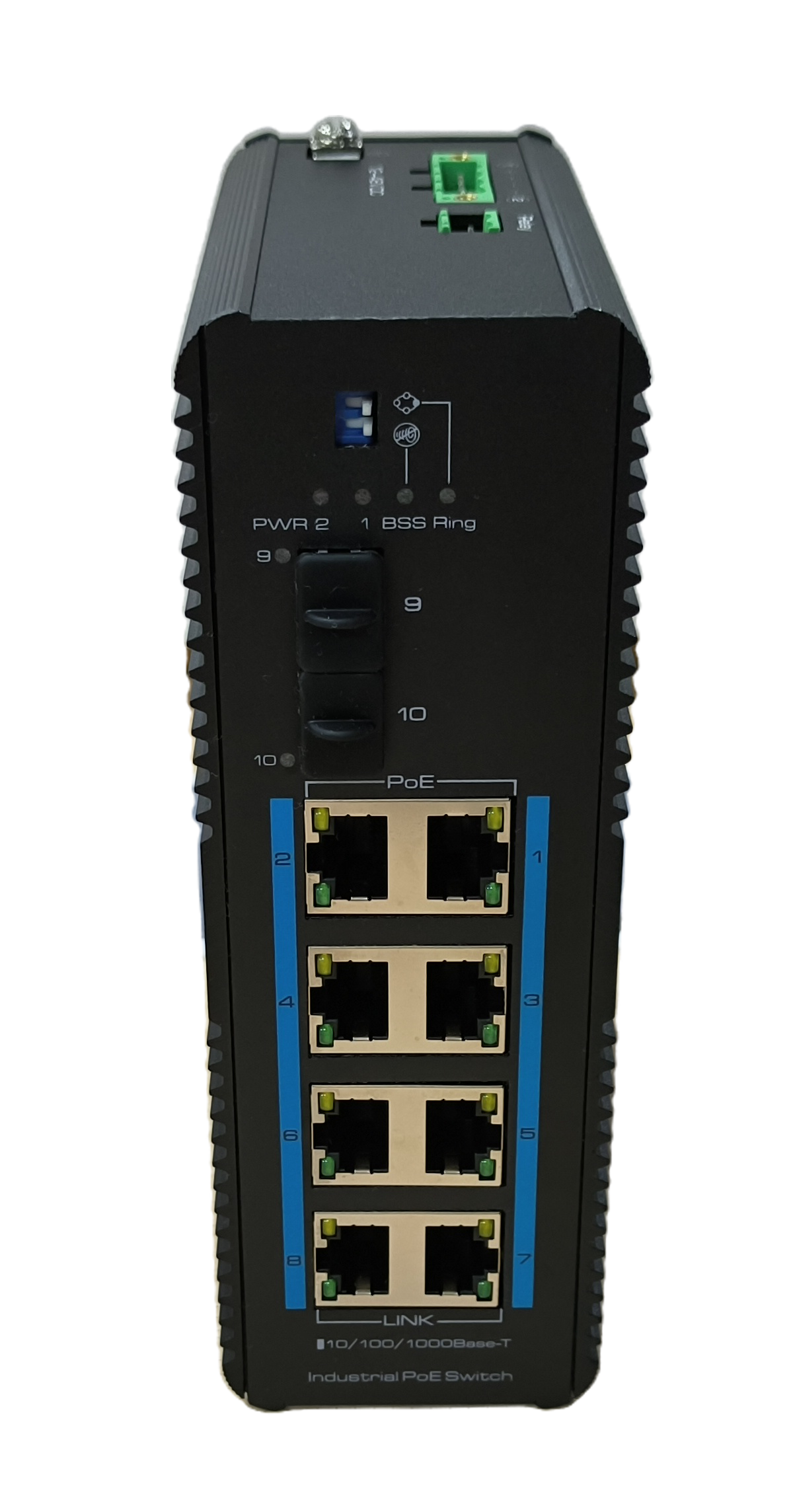

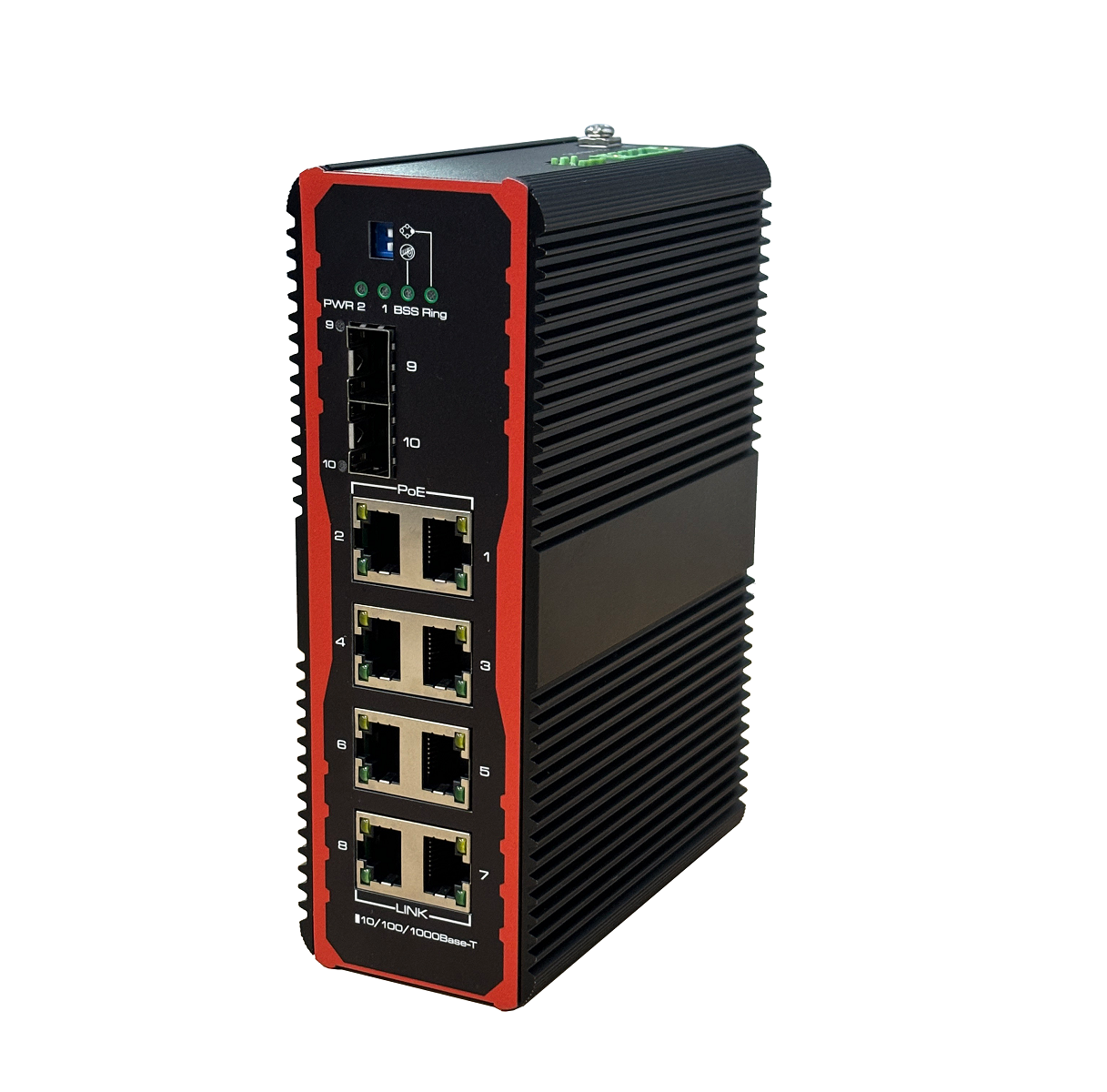

Industrial 8-Port Gigabit Solar PoE Switch
Industrial 8-Port Gigabit Solar PoE Switch
- Provide 8*10/100/1000Base-T Ethernet port and 2*1000Base-X SFP slots.
- Support max 200 meters of transmission distance with auto speed reduction.
- Support one-key fast ring, with self-healing time in 20ms.
- Support one-key broadcast storm suppression(BSS), preventing crash of the switches.
- Support one channel relay alarm output, fanless, wave metal shell, low power consumption design.
- Support installation of DIN rail and wall mounted, adapting to a variety of environments.
- Support IEEE802.3af/at, max PoE power output for single port is up to 30W.
- Support wide voltage input range from DC 12V to DC 48V.
- Support PoE watchdog, auto reboot the connected failure PD devices.
Overview
Full gigabit one-key ring industrial unmanaged switches provide 8*10/100/1000Base-T Ethernet port and
2*1000Base-X SFP slots. Support auto speed reduction on Ethernet ports, the transmission distance is up
to 200 meters max. What’s more, the series support one-key fast ring, one-key broadcast storm
suppression(BSS), IEEE802.3af/at and PoE watchdog. With industrial components, fanless and low power
consumption design, the series meet the requirement of industrial project, and are widely used in smart
power grid, transportation, smart city, safe city, new energy, aerospace, smart manufacturing, military and
other industrial fields.
Features
- Provide 8*10/100/1000Base-T Ethernet port and 2*1000Base-X SFP slots.
- Support max 200 meters of transmission distance with auto speed reduction.
- Support one-key fast ring, with self-healing time in 20ms.
- Support one-key broadcast storm suppression(BSS), preventing crash of the switches.
- Support one channel relay alarm output, fanless, wave metal shell, low power consumption design.
- Support installation of DIN rail and wall mounted, adapting to a variety of environments.
- Support IEEE802.3af/at, max PoE power output for single port is up to 30W.
- Support wide voltage input range from DC 12V to DC 48V.
- Support PoE watchdog, auto reboot the connected failure PD devices.

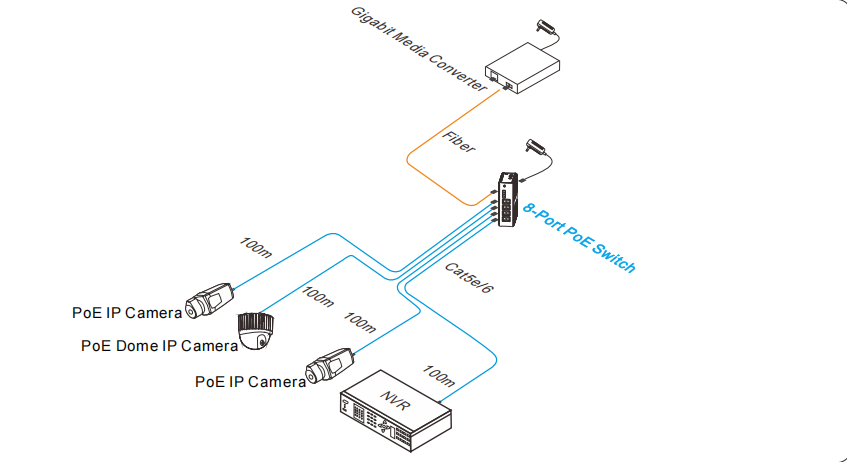

Application
Technical Specifications
| Downlink Ports | 8*10/100/1000Base-T PoE |
| Uplink Ports | 2*1000 Base-X SFP Slots |
| Alarm Output | One channel relay alarm output, 1A@DC 9V, 2 cores, 5.08mm terminal |
| DIP Switch | 1. Enable / Disable fast ring & PoE watchdog, with self-healing time less than 20ms. |
| Standards | 2. Enable / Disable broadcast storm suppression. |
| Switching Capacity | IEEE 802.3 , IEEE 802.3u, IEEE 802.3ab, IEEE 802.3Z, IEEE 802.3X, IEEE 802.1D, IEEE 802.1af/at |
| Packet Forwarding Rate | 20Gbps |
| Packet Buffer | 14.9Mpps |
| MAC Table | 2Mbit |
| Jumbo Frame | 16k |
| LED Indicator | 10k bytes |
| PoE Line Pair | Port: 1*Link/Act (Green) & 1*PoE Status(Orange) |
| PoE Output Power | 1*One-key Fast Ring (Green), 1*One-key BSS (Green), 2*PWR (Red) |
| Input Terminal | 1/2(+)，3/6(-) |
| Input Voltage | Max POE output for single port≤30W |
| Power Consumption | Whole machine output PoE power: |
| Surge Immunity | 80W(12V), 120W(24V), 240W(48V). |
| ESD Protection | 4 PIN / 5.08mm |
| Operating Temperature | DC 12~48V DIN-rail industrial power supply (Optional) |
| Storage Temperature | ≤12W (Not inlcude PoE) |
| Operating Humidity | 6kV, Standard: IEC61000-4-5 |
| Material | 6kV: Contact discharge, 8kV: Air discharge, Standard: IEC61000-4-2 |
| Dimensions(W*D*H) | -40~75℃ |
| Installation | -40~85℃ |
| 166.17mm*112mm*56mm | 5%~95% (Non-condensation) |
| Weight | Aluminium alloy, IP40 |
| Certifications | DIN rail / Wall mounted |

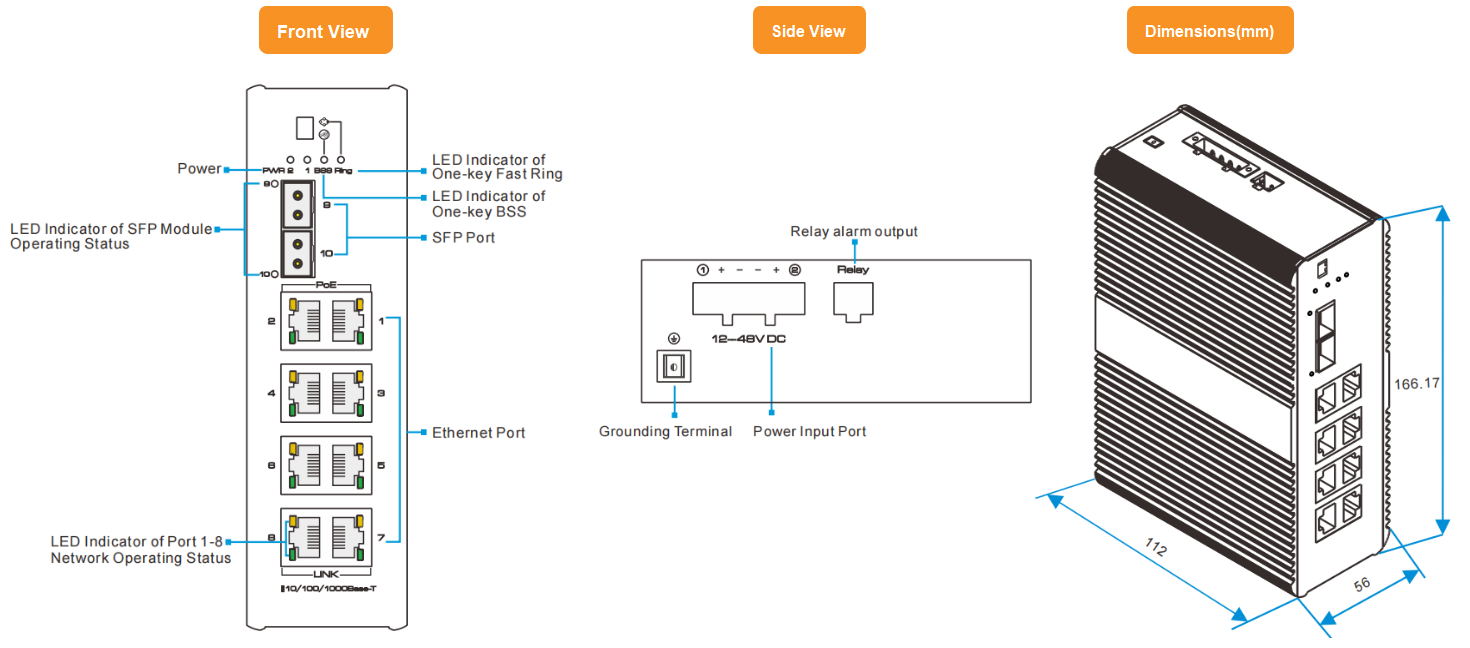

Board Diagram
Packing List
Industrial PoE Switch 1 pc
Accessory 1 set
User Manual 1 pc
Power Adapter(Optional) 1 pc
