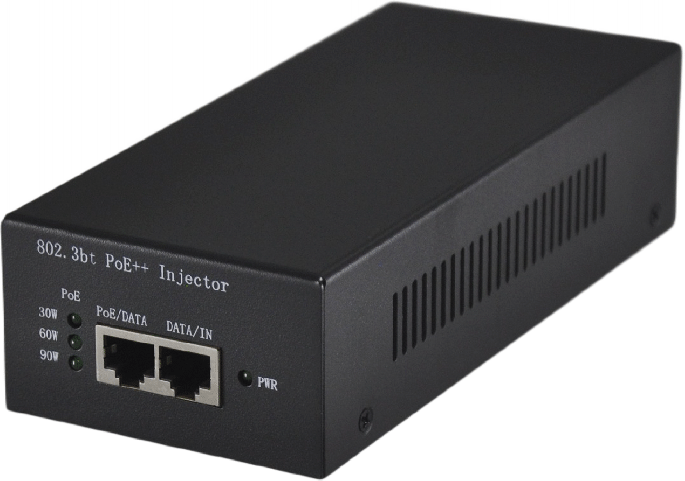

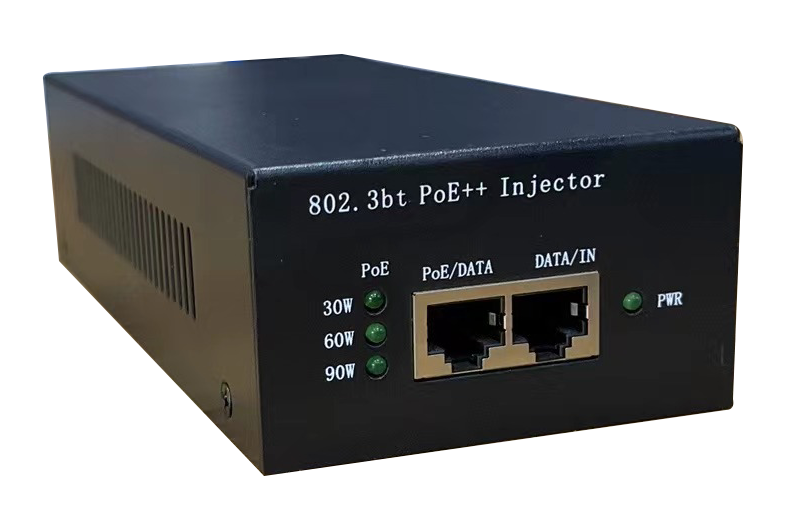

90W Gigabit PoE Injector

90W Gigabit PoE Injector

  • Up to 90W of Power on 4-pairs
  • 10/100/1000Base-T
  • Full IEEE 802.3af IEEE 802.3at/IEEE802.3bt Compliant
  • Auto-detect of POE IEEE 802.3af IEEE 802.3at/IEEE802.3bt equipment .
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/ DC converter – no need for external power modules
  • Easy plug-and-play installation
  • Surge protection
View full details

Technical Specifications

Item Description
No . of channels 1
Pass Through Data Rates 10/ 100/ 1000Mbps
Power over Ethernet Output
Pin Assignment and Polarity
1/2(-)3/6( +)/4/5( +)7/8(-)
Output Power Voltage: 54VDC
User Port Power: 90W MAX
Input Power Requirements
AC Input Voltage: 100 to 240 Vac
AC Input Current: 1A 100-240 Vac
AC Frequency: 50 to 60 Hz
Dimensions 148 .8mm x 75 .2mm x 41mm
Indicators
System indicator: AC Power
User Indicator: Channel Power
Connectors Shielded RJ-45/ EIA 568A and 568B
Protection
Over current protection
Over load protection
Over voltage protection
Anti-interference protection
Environmental Conditions
Operating Ambient Temperature:-10 to 55℃
Operating Humidity:Maximum 80%/ Non-condensing
Storage Temperature:-40 to 70℃
Storage Humidity:Maximum 80%/ Non-condensing
Regulatory Compliance
IEEE 802 .3af (15 .4W)
IEEE 802 .3at (30W)
IEEE802 .3bt (90W)

Application

Application Image

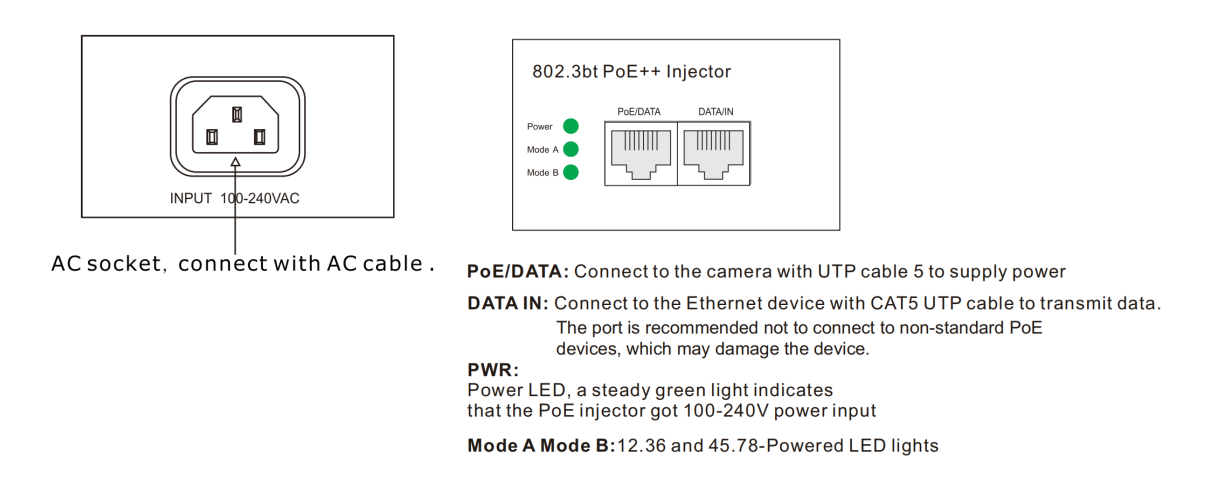

Board Diagram

Board Diagram
