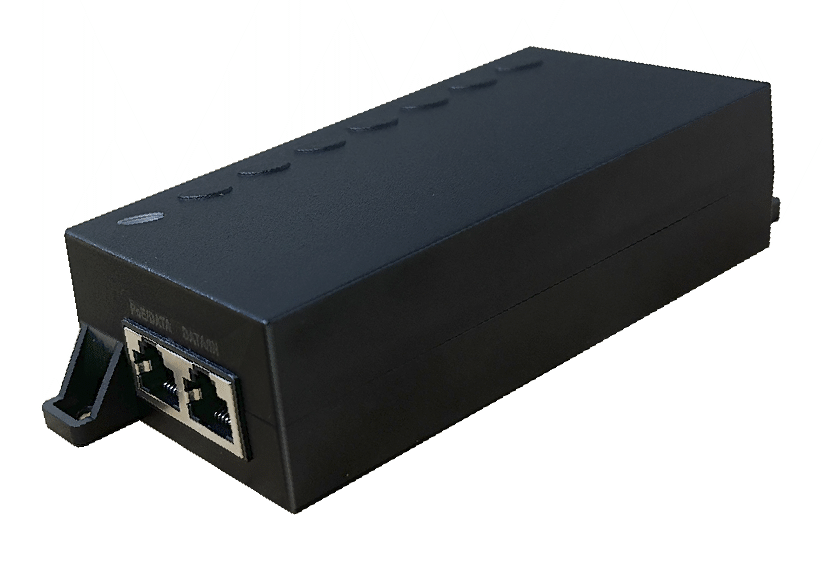

60W Gigabit PoE Injector

Item	Description
No . of channels	1
Pass Through Data Rates	10/ 100/ 1000Mbps
Power over Ethernet Output	Pin Assignment and Polarity 1/2(-)3/6( +),4/ 5( +)7/8(-) Output Power Voltage: 54VDC User Port Power: 30W&60W
Input Power Requirements	AC Input Voltage : 100 to 240 Vac AC Input Current: 1A 100-240 Vac AC Frequency: 50 to 60 Hz
Dimensions	138mm x 63mm x 33 . 5mm

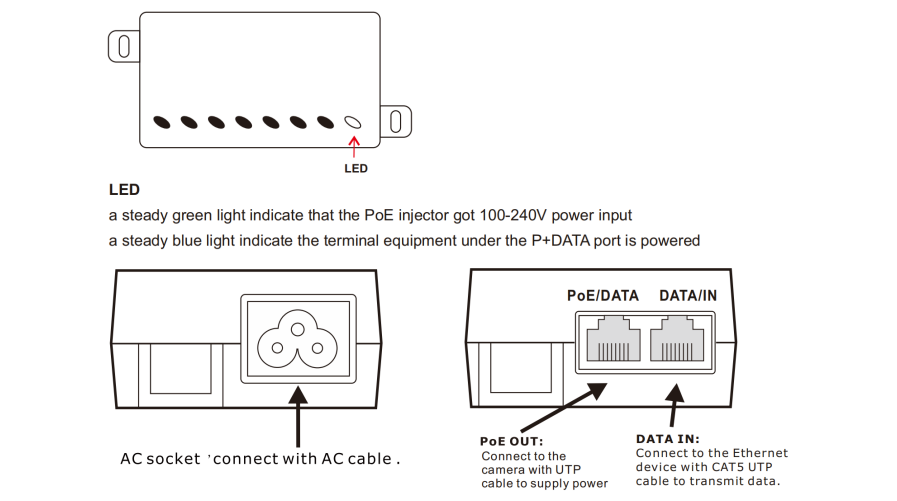

Indicators	System indicator: AC Power User Indicator: Channel Power
Connectors	Shielded RJ-45, EIA 568A and 568B
Protection	Over current protection Over load protection Over voltage protection Anti-interference protection
Environmental Conditions	Operating Ambient Temperature:-10 to 55℃ Operating Humidity:Maximum 80%, Non-condensing Storage Temperature:-40 to 70℃ Storage Humidity: Maximum 90%, Non-condensing
Regulatory Compliance	IEEE 802 .3af (15 .4W) IEEE 802 .3at (30W) IEEE802 .3bt (60W)

Packing List
