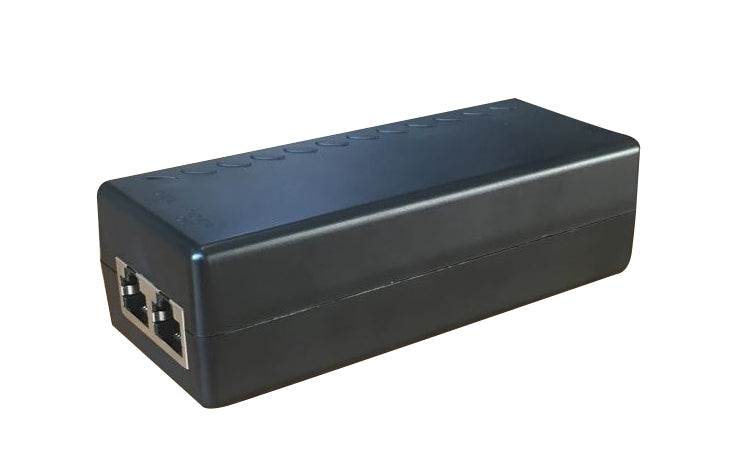

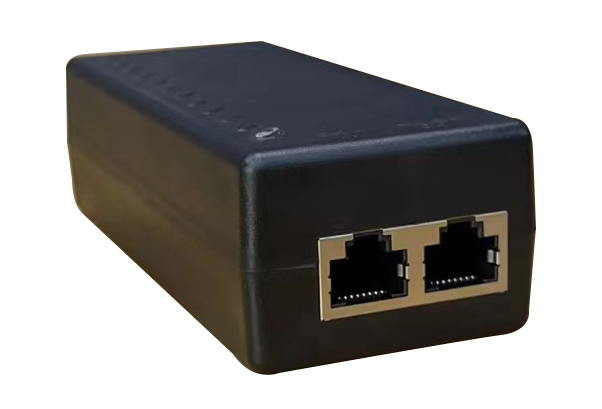

30W Gigabit PoE Injector

Item	Description
No . of channels	1
Pass Through Data Rates	10/100/1000Mbps
Power over Ethernet Output	Pin Assignment and Polarity : 1/2 (-) , 3/6 ( + ) Output Power Voltage : 54VDC User Port Power : 30W max
Input Power Requirements	AC Input Voltage : 100 to 240 VAC AC Input Current : 0.5A 100-240 VAC AC Frequency : 50 to 60 Hz
Dimensions	121mm x 50mm x 36mm

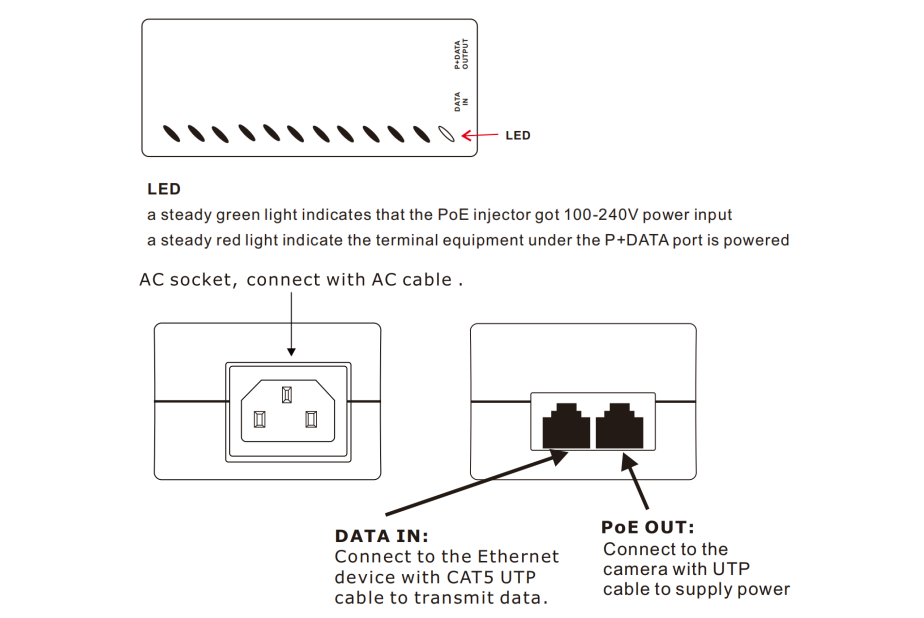

Indicators	System Indicator : AC Power User Indicator : Channel Power
Connectors	Shielded RJ-45 , EIA 568A and 568B
Protection	Over current protection Over load protection Over voltage protection Anti-interference protection
Environmental Conditions	Operating Ambient Temperature : -10 to 55℃ Operating Humidity : Maximum 90%, Non-condensing Storage Temperature:-40 to 70℃ Storage Humidity : Maximum 90%, Non-condensing
Regulatory Compliance	IEEE 802.3af (15 .4W ) IEEE 802.3at (30W )

Packing List
