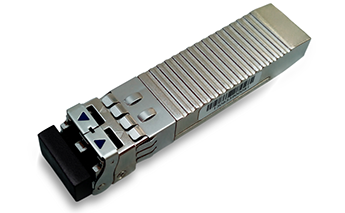

10G Multi-mode Dual Fibers(Duplex-LC) 300m SFP+ Optical Module
10G Multi-mode Dual Fibers(Duplex-LC) 300m SFP+ Optical Module
Overview
This is a standard SFP+ optical module. It uses two multi-mode optical fibers and the speed rate can up to 10Gbps, transmission distance up to 300m. This product need to use in pair and match up with fiber converter and optical Ethernet switch with SFP slot, it can be used in Ethernet, telecom and optical fiber communication and other industries.
Features
Optical interface compliant to IEEE 802.3ae 10GBASE-SR
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Maximum link length of 300m on 2000MHz/km MMF
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
Technical Specifications
| Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V |
| Consumption | 1W |
| Optical Wave Length | 850nm; |
| Emission Light Power | -6.5～-1dBm |
| Receiver Sensitivity | -11dBm |
| Optical Fiber Type | Multi-mode 50µm MMF |
| Optical Fiber Port | duplex-LC |
| Transmission Distance | 300m |
| ESD | 1a contact discharge 3 level 1 b air discharge 3 level Per: IEC61000-4-2 |
| Working Temperature | -5℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Humidity (Non - | 0~95% |
| Dimension (L×W×H) | 55.4mm × 13.7mm ×8.5mm |
| Material | Stainless Steel |
| Color | White |
| Weight | 17g |
