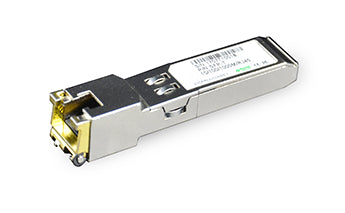

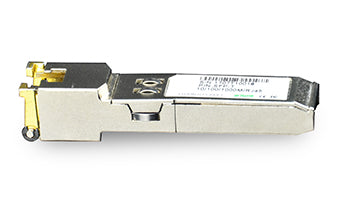

1000BASE-T copper SFP transceiver
1000BASE-T copper SFP transceiver
- Up to 1.25Gb/s bi-directional data links ;
- Hot-pluggable SFP footprint ;
- Extended case temperature range (0°C to +70°C );
- Fully metallic enclosure for low EMI;
- Low power dissipation (1.05 W typical);
- Compact RJ45 connector assembly;
- Access to physical layer IC via 2-wire serial bus;
- 1000 BASE-T operation in host systems with SERDES interface.
Overview
The Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach
over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
Features
- Up to 1.25Gb/s bi-directional data links ;
Hot-pluggable SFP footprint ;
Extended case temperature range (0°C to +70°C );
Fully metallic enclosure for low EMI;
Low power dissipation (1.05 W typical);
Compact RJ45 connector assembly;
Access to physical layer IC via 2-wire serial bus;
1000 BASE-T operation in host systems with SERDES interface.
Technical Specifications
| Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V |
| Consumption | 1W |
| Connector | SFP Slot |
| Port | 1000BASE-X |
| Connector | RJ45 |
| Port | 1000BASE-T |
| ESD | 1a contact discharge 3 level 1 b air discharge 3 level Per: IEC61000-4-2 |
| Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity (Non-condensing) | 0~95% |
| Dimension (L×W×H) | 55.4mm × 13.7mm ×8.5mm |
| Material | Stainless Steel |
| Color | White |
| Weight | 17g |
